Het Lager van de Spragkoppeling
>
|
| Plaats van herkomst | China |
| Merknaam | SUMA |
| Certificering | ISO SGS |
| Modelnummer | Bwc-13239B |

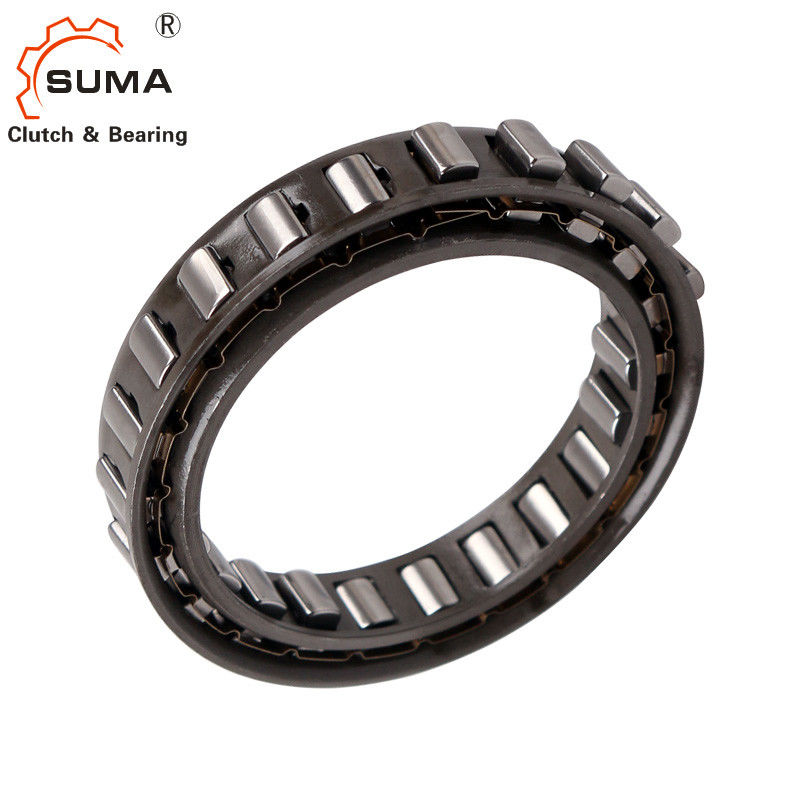

Bwc-13239B GCr15 Centrifugaal711nm Sprag ondersteunen het Dragen
- Alle koppelingen worden gepast met hoge precisie op zwaar werk berekende lagers voor lastige plichtstoepassingen.
- De koppeling rangschikt 300 tot 700 wordt gepast met ARO sprags om zich tegen trilling en hoge voorbijgaande torsies en overbelasting te verzetten.
- ZO smeerden de reekskoppelingen, olie geschikt om te overschrijden, te ondersteunen en middelgrote plicht te indexeren (tot geïndexeerde 150/minuut).
Technische Datas
| Productnaam | Bwc-13239B de Centrifuge ondersteunt Koppeling |
| Model | BWC |
| Materiaal | GCr15 |
| Pakket | Kartondoos/Houten doos, katrol, enz. |
| Betalingstermijnen | TT. L/C, D/A, D/P, Western Union |
| levertijd | 2-4 dagen voor de steekproef, 7 dagen voor grote orde |
Afmeting en Capaciteit
| Type | Binnenschachtdiameter | Buitenschachtdiameter | Maximumbreedte | Geschatte Belemmeringstorsie | ||
| Di | Spragruimte | DE | Spragruimte | B | N.m (kgf-m) | |
| X-133818T | 20,345 | +0,008 - 0,005 | 37,008 |
+0,008 -0,005 |
10.0 | 49 (5,0) |
| X-134939 | 22,225 | - | 38,887 | ±0.013 | 10.0 | 75 (7,6) |
|
Bwc-13219A BW-13252 |
27,762 | - | 44,425 | - |
13.5 19.1 |
139 (14,2) 233 (23,8) |
| X-135052 | 31,881 | - | 48,548 | - | 13.5 | 154 (15,7) |
| X-135014 X-133399 | 37,317 | - | 53,980 | - |
12.0 15.9 |
185 (18,9) 309 (31,5) |
|
BW-13161 Bwc-13230 |
38,092 | - | 54,750 | - |
13.5 15.9 |
251 (25,6) 323 (33,0) |
| X-135005 | 38,568 | - | 55,207 | - | 20.5 | 422 (43,0) |
| X-133400 | 40,485 | 一 | 57,150 | - | 22.3 | 534 (54,5) |
| BW-13244 X-135067 | 41,275 | 一 | 57,937 | - |
13.5 17.4 |
212 (21,6) 343 (35,0) |
| X-135041 | 44,450 | - | 61,112 | 一 | 13.5 | 226 (23,0) |
| X-135349 | 47,325 | - | 63,987 | - | 13.5 | 343 (35,0) |
| X-135036 | 47,408 | - | 64,075 | - | 22.3 | 667 (68,0) |
| X-134398 | 49,720 | - | 66,383 | - | 19.1 | 667 (68,0) |
|
Type D |
Iinsidediameter
|
Buitendiameter
|
Aantal van sprags |
Richting | Benoeming | Auxitiarydelen |
Gewicht
|
|
| (G) | ||||||||
| X-133818T | 15.8 | 47.5 | 10 | D | C | 1 | T | 30 |
| X-134939 | 17.2 | 50.1 | 12 | D | C | 1 | T | 35 |
| Bwc-13219A | 21.5 | 56.9 | 14 | E | CC | 1 | T | 60 |
| BW-13252 | E | c | 1 | T | 90 | |||
| X-135052 | 24.6 | 62.0 | 16 | D | c | 1 | Cl | 65 |
| X-135014 | 18 | E | c | 1 | Cl | 65 | ||
| X-133399 | 28.9 | 69.1 | 18 | E | c | 1 | 90 | |
| BW-13161 | E | c | 1 | 75 | ||||
| Bwc-13230 | 29.5 | 70.1 | 18 | D | CC | 1 | T.ST | 90 |
| X-135005 | 30.9 | 70.7 | 18 | D | c | 1 | CL.ST | 110 |
| X-133400 | 32.4 | 71.5 | 18 | E | c | 1 | 135 | |
| BW-13244 | 14 | D | c | 1 | CL.ST | 75 | ||
| X-135067 | 33.0 | 72.5 | 18 | D | c | 1 | T | 105 |
| X-135041 | 35.5 | 76.4 | 20 | E | c | EB.CL | 100 | |
| X-135349 | 37.9 | 80.0 | 22 | D | c | 1 | 90 | |
| X-135036 | 37.9 | 80.1 | 22 | E | c | 1 | CL.ST | 150 |
| X-134398 | 39.7 | 83.0 | 22 | D | c | 1 | CL.ST | 135 |
| Type | Binnenschachtdiameter | Buitenschachtdiameter | Maximumbreedte | Geschatte Belemmeringstorsie | ||
| Di | Spragruimte | DE | Spragruimte | B | N.M (kgf.m) | |
| x-135006 | 54,572 | +0.0080.005 | 71,211 | ±0.013 | 20.5 | 799 (81,5) |
| BW-13231 |
54,765 |
— |
71,427 |
— |
13.5 | 402 (41,0) |
| BW-13214 | 15.9 | 363 (37,0) | ||||
| BW-13167 | 15.9 | 569 (58,0) | ||||
| BW-13209 |
57,760 |
— |
74,427 |
— |
13.5 | 554 (56,5) |
| Bwc-13239B | 15.9 | 711 (72,5) | ||||
| BW-13238 | 21.0 | 1050 (107) | ||||
| X-133401 | 59,538 | — | 76,200 | — | 25.4 | 1350 (138) |
| BW-13243 |
72,217 |
— |
88,882 |
—
|
13.5 | 637 (65,0) |
| Bwc-13168 | 21.0 | 1510 (154) | ||||
| Bwc-13229 | 21.6 | 1325 (135) | ||||
| BW-13255 | 26.7 | 1920 (196) | ||||
| X-133614C | 83,596 | ±0.013 | 102,555 | — | 25.4 | 3040 (310) |
| X-133402 | 85,776 | — | 104,775 | — | 25.4 | 3090 (315) |
| Bwc-13251 |
103,231 |
— |
119,944 |
— |
15.4 | 789 (80,5) |
| Bwc-13261 | 15.4 | 1580 (161) | ||||
| X-133639 | 103,231 | — | 122,230 | — | 25.4 | 4410 (450) |
| X-133403 | 123,881 | — | 142,880 | — | 25.4 | 5740 (585) |
|
Type D |
Iinsidediameter D |
Buitendiameter D |
Aantal sprags | Richting | Benoeming | Auxitiarydelen |
Gewicht (G) |
|
| X-135006 | 43.6 | 89.1 | 24 | D | C | 1 | CL.ST | 60 |
| BW -13231 | 20 | D | C | 1 | T.ST | 95 | ||
| BW-13214 | 43.8 | 89.3 | 14 | D | c | 1 | T.ST | 105 |
| BW-13167 | 22 | E | c | 1 | 120 | |||
| BW-13209 | 26 | D | c | 1 | T.ST | 105 | ||
| Bwc-13239B | 46.2 | 93.1 | 26 | D | CC | 1 | CL.ST | 125 |
| BW-13238 | 26 | E | c | 1 | 175 | |||
| X-133401 | 47.6 | 95.3 | 26 | E | c | 1 | 220 | |
| BW -13243 | 24 | D | c | 1 | CL.ST | 120 | ||
|
Bwc-13168 Bwc-13229 |
57.7 | 111 |
30 30 |
E E |
CC CC |
1 | EB |
210 190 |
| BW -13255 | 30 | D | c | 1 | CL.ST | 255 | ||
| •X-133614C | 66.7 | 128 | 34 | E | c | 1 | Cl. | 350 |
| X-133402 | 68.6 | 131 | 34 | E | c | 1 | 350 | |
| BWC-13251 BWC-13261 | 82.5 | 150 |
18 36 |
D D |
CC CC |
1 |
CL.ST CL.ST |
180 200 |
| X-133639 | 82.5 | 153 | 40 | E | c | 1 | CL.ST | 410 |
| X-133403 | 99.1 | 179 | 44 | E | c | 1 | 480 |
