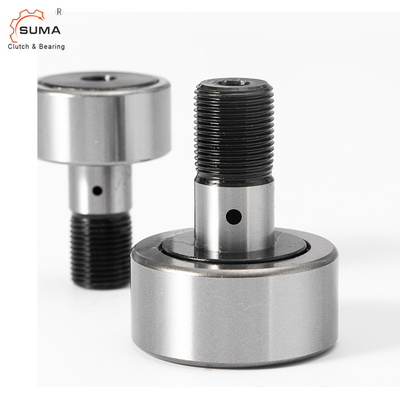

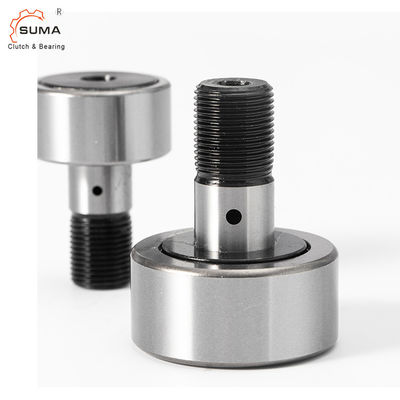

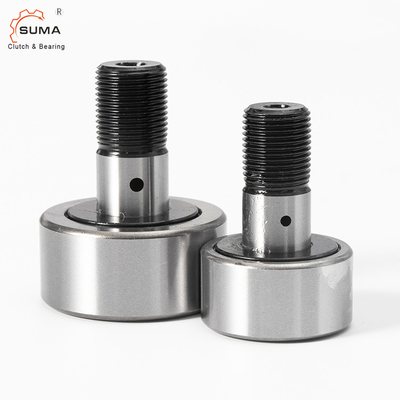

CCFH 3 1/4 Nageltype van S het Op zwaar werk berekende Nokkenaanhanger Dragen voor Autoinstallaties
Eigenschappen
De typische functies van een nokkenaanhanger moeten antifrictiesteun van lineaire beweging verlenen of de oppervlakte van een nok volgen.
SUMA Stud Cam Follower werd ontworpen om de intermitterende schok, ladings en precisievereisten te weerstaan verbonden aan deze toepassingen.
Toepassing:
Voedsel en Drank | Verpakkend materiaal | Eenheid materiële behandeling |
Autoinstallaties | Olieboring | Staalfabrieken |
Texitiles/Druk | Automatiseringsmateriaal | Werktuigmachines |
Technische Datas
Afmetingen en Capaciteiten
INSEALED BRG. Nr |
INSEALED BRG. Nr |
ROL DIA (RD) |
ROL BREEDTE (w) |
NAGEL DIA (BR) |
NAGEL LENGTE (SL) |
MIN. DRAAD LENGTE (TL) |
BOETE DRAAD |
OLIEgat | HUISVESTING DIA +.0002 -.0003 |
RRCOM. CL AMPING TORSIE Pond. IN |
MAXIMUM STATISCH CAPACITEIT Pond. |
BASIC Dyne. CLASSIFICATIE Pond. |
|
GAT CENTRUM (HC) |
GAT DIA (HD) |
||||||||||||
Cfh-1/2 | Cfh-1/2-s | 0,500 | 0,375 | 0,250 | 5/8 | 1/4 | 1/428 | .2503 | 35 | 1580 | 680 | ||
Cfh-9/16 | Cfh-9/16-s | 0,5625 | 0,375 | 0,250 | 5/8 | 1/4 | 1/428 | .2503 | 35 | 1580 | 680 | ||
Cfh-5/8 | Cfh-5/8-s | 0,625 | 0,4375 | 0,3125 | 3/4 | 5/16 | 5/1624 | .3128 | 90 | 2480 | 955 | ||
Cfh-11/16 | Cfh-11/16-s | 0,6875 | 0,4375 | 0,3125 | 3/4 | 5/16 | 5/1624 | .3128 | 90 | 2480 | 955 | ||
Cfh-3/4 | Cfh-3/4-s | 0,750 | 0,500 | 0,4375 | 7/8 | 3/8 | 7/1620 | 1/4 | 3/32 | .4378 | 250 | 4130 | 1660 |
Cfh-7/8 | Cfh-7/8-s | 0,875 | 0,500 | 0,4375 | 7/8 | 3/8 | 7/1620 | 1/4 | 3/32 | .4378 | 250 | 4130 | 1660 |
Cfh-1 | Cfh-1-s | 1,000 | 0,625 | 0,625 | 1 | 1/2 | 5/8-18 | 1/4 | 3/32 | .6253 | 650 | 6120 | 2225 |
Cfh-1 1/8 | Cfh-1 1/8-s | 1.1250 | 0,625 | 0,625 | 1 | 1/2 | 5/8-18 | 1/4 | 3/32 | .6253 | 650 | 6120 | 2225 |
Cfh-1 1/4 | Cfh-1 1/4-s | 1,250 | 0,750 | 0,750 | 1 1/4 | 5/8 | 3/4-16 | 5/16 | 3/32 | .7503 | 1250 | 8500 | 3930 |
Cfh-1 3/8 | Cfh-1 3/8-s | 1,375 | 0,750 | 0,750 | 1 1/4 | 5/8 | 3/4-16 | 5/16 | 3/32 | .7503 | 1250 | 8500 | 3930 |
Cfh-1 1/2 | Cfh-1 1/2-s | 1,500 | 0,875 | 0,875 | 1 1/2 | 3/4 | 7/8-14 | 3/8 | 3/32 | .8753 | 1500 | 11280 | 4840 |
Cfh-1 5/8 | Cfh-1 5/8-s | 1,625 | 0,875 | 0,875 | 1 1/2 | 3/4 | 7/8-14 | 3/8 | 3/32 | .8753 | 1500 | 11280 | 4840 |
Cfh-1 3/4 | Cfh-1 3/4-s | 1,750 | 1,000 | 1,000 | 1 3/4 | 7/8 | 1-14 | 7/16 | 3/32 | 1.0003 | 2250 | 15840 | 6385 |
Cfh-1 7/8 | Cfh-1 7/8-s | 1,875 | 1,000 | 1,000 | 1 3/4 | 7/8 | 1-14 | 7/16 | 3/32 | 1.0003 | 2250 | 15840 | 6385 |
Cfh-2 | Cfh-2-s | 2,000 | 1,125 | 1,125 | 2 | 1 | 1 1/8-12 | 1/2 | 1/8 | 1.1253 | 2800 | 21140 | 8090 |
Cfh-2 1/4 | Cfh-2 1/4-s | 2,250 | 1,125 | 1,125 | 2 | 1 | 1 1/8-12 | 1/2 | 1/8 | 1.1253 | 2800 | 21140 | 8090 |
Cfh-2 1/2 | Cfh-2 1/2-s | 2,500 | 1,250 | 1,250 | 2 1/4 | 1 1/8 | 1 1/4-12 | 9/16 | 1/8 | 1.2503 | 3450 | 32900 | 11720 |
Cfh-2 3/4 | Cfh-2 3/4-s | 2,750 | 1,250 | 1,250 | 2 1/4 | 1 1/8 | 1 1/4-12 | 9/16 | 1/8 | 1.2503 | 3450 | 32900 | 11720 |
Cfh-3 | Cfh-3-s | 3,000 | 1,500 | 1,500 | 2 1/2 | 1 1/4 | 1 1/2-12 | 5/8 | 1/8 | 1.5003 | 5000 | 49820 | 15720 |
Cfh-3 1/4 | Cfh-3 1/4-s | 3,250 | 1,500 | 1,500 | 2 1/2 | 1 1/4 | 1 1/2-12 | 5/8 | 1/8 | 1.5003 | 5000 | 49820 | 15720 |
Cfh-3 1/2 | Cfh-3 1/2-s | 3,500 | 1,750 | 1,750 | 2 3/4 | 1 3/8 | 1 3/4-12 | 11/16 | 1/8 | 1.7503 | 5000 | 63250 | 22800 |
Cfh-4 | Cfh-4-s | 4,000 | 2,000 | 2,000 | 3 1/2 | 1 1/2 | 2-12 | 3/4 | 1/8 | 2.0003 | 5000 | 89540 | 29985 |
Cfh-5-s | 5,000 | 2,750 | 2,500 | 5 1/16 | 2 9/16 | 2 1/2-12 | 7/8 | 3/16 | 2.5003 | 5000 | 135900 | 46575 | |
Cfh-6-s | 6,000 | 3,250 | 3,000 | 6 | 3 | 3-12 | 1 | 3/16 | 3.0003 | 5000 | 160900 | 60000 | |
Cfh-7-s | 7,000 | 3,750 | 3,500 | 7 11/16 | 4 1/8 | 3 1/2-4 | 1 1/4 | 3/16 | 3.5003 | 5000 | 213860 | 75380 |
