Nageltype Nokkenaanhanger
>
|
| Plaats van herkomst | China |
| Merknaam | SUMA |
| Certificering | ISO SGS |
| Modelnummer | Cf.-1-3/4-Sb |

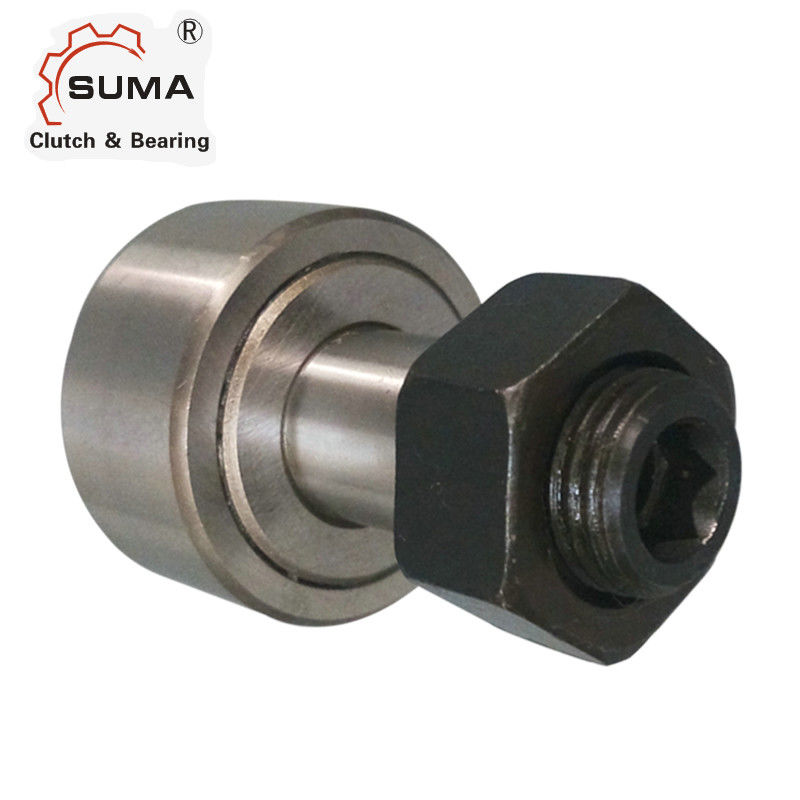

Cf.-1-3/4-Sb Nageltype de Cilindrische Nok van de Rolaanhanger
Eigenschappen
machinaal bewerkte dik-muur buitenring
naaldrollen of cilindrische rolreeksen
kooibegeleiding of de volledige rol van de aanvullingsnaald
binnenring of bout en verbinding
Technische Datas
| Unseal Nr. |
Verzegelde Nr. |
Rol Dia. (RD) |
Rolbreedte (W) |
Nagel Dia. (BR) |
Nagel Lgth (SL) |
Min Thrd Lgth (TL) |
Fijne Draden |
De Grootte van Lubfiting (f) |
Toque Pond |
Statische Capaciteit Pond |
Dynamische Cpacity Pond |
| Cf.-1/2-n | Cf.-1/2-n-s | 0,5 | 0,344 | 0,19 | 1/2 | 1/4 | 10-32 | 1/8 | 15 | 720 | 620 |
| Cf.-1/2 | Cf.-1/2-s | 0,5 | 0,375 | 0,19 | 5/8 | 1/4 | 10-32 | 1/8 | 15 | 790 | 680 |
| Cf.-9/16 | Cf.-9/16-s | 0,5625 | 0,375 | 0,19 | 5/8 | 1/4 | 10-32 | 1/8 | 15 | 790 | 680 |
| Cf.-5/8-n | Cf.-5/8-n-s | 0,625 | 0,406 | 0,25 | 5/8 | 5/16 | 1/428 | 1/8 | 35 | 1065 | 930 |
| Cf.-5/8 | Cf.-5/8-s | 0,625 | 0,4375 | 0,25 | 3/4 | 5/16 | 1/428 | 1/8 | 35 | 1215 | 955 |
| Cf.-11/16 | Cf.-11/16-s | 0,6875 | 0,4375 | 0,25 | 3/4 | 5/16 | 1/428 | 1/8 | 95 | 1215 | 955 |
| Cf.-3/4 | Cf.-3/4-s | 0,75 | 0,5 | 0,375 | 7/8 | 3/8 | 3/824 | 3/16 | 95 | 2065 | 1660 |
| Cf.-7/8 | Cf.-7/8-s | 0,875 | 0,5 | 0,375 | 7/8 | 3/8 | 3/824 | 3/16 | 250 | 2065 | 1660 |
| Cf.-1 | Cf.-1-s | 1 | 0,625 | 0,4375 | 1 | 1/2 | 7/1620 | 3/16 | 250 | 3060 | 2225 |
| Cf.-1 1/8 | Cf.-1 1/8-s | 1,125 | 0,625 | 0,4375 | 1 | 1/2 | 7/1620 | 3/16 | 350 | 3060 | 2225 |
| Cf.-1 1/4 | Cf.-1 1/4-s | 1.25 | 0,75 | 0,5 | 1 1/4 | 5/8 | 1/220 | 3/16 | 350 | 4250 | 3930 |
| Cf.-1 3/8 | Cf.-1 3/8-s | 1,375 | 0,75 | 0,5 | 1 1/4 | 5/8 | 1/220 | 3/16 | 650 | 4250 | 3930 |
| Cf.-1 1/2 | Cf.-1 1/2-s | 1.5 | 0,875 | 0,625 | 1 1/2 | 3/4 | 5/8-18 | 3/16 | 650 | 5640 | 4840 |
| Cf.-1 5/8 | Cf.-1 5/8-s | 1,625 | 0,875 | 0,625 | 1 1/2 | 3/4 | 5/8-18 | 3/16 | 1250 | 5640 | 4840 |
| Cf.-1 3/4 | Cf.-1 3/4-s | 1.75 | 1 | 0,75 | 1 3/4 | 7/8 | 3/4-16 | 3/16 | 1250 | 7920 | 6385 |
| Cf.-1 7/8 | Cf.-1 7/8-s | 1,875 | 1 | 0,75 | 1 3/4 | 7/8 | 3/4-16 | 3/16 | 1500 | 7920 | 6385 |
| Cf.-2 | Cf.-2-s | 2 | 1.25 | 0,875 | 2 | 1 | 7/8-14 | 3/16 | 1500 | 10570 | 8090 |
| Cf.-2 1/4 | Cf.-2 1/4-s | 2.25 | 1.25 | 0,875 | 2 | 1 | 7/8-14 | 3/16 | 2250 | 10570 | 8090 |
| Cf.-2 1/2 | Cf.-2 1/2-s | 2.5 | 1.5 | 1 | 2 1/4 | 1 1/8 | 1-14 | 3/16 | 2250 | 16450 | 11720 |
| Cf.-2 3/4 | Cf.-2 3/4-s | 2.75 | 1.5 | 1 | 2 1/4 | 1 1/8 | 1-14 | 3/16 | 3450 | 16450 | 11720 |
| Cf.-3 | Cf.-3-s | 3 | 1.75 | 1.25 | 2 1/2 | 1 1/4 | 1 1/4-12 | 1/4 | 3450 | 24910 | 15720 |
| Cf.-3 1/4 | Cf.-3 1/4-s | 3.25 | 1.75 | 1.25 | 2 1/2 | 1 1/4 | 1 1/4-12 | 1/4 | 4200 | 24910 | 15720 |
| Cf.-3 1/2 | Cf.-3 1/2-s | 3.5 | 2 | 1,375 | 2 3/4 | 1 3/8 | 1 3/8-12 | 1/4 | 5000 | 31625 | 22800 |
| Cf.-4 | Cf.-4-s | 4 | 2.25 | 1.5 | 3 1/2 | 1 1/2 | 1 1/2-12 | 1/4 | 5000 | 44770 | 29985 |
| Cf.-5-s | 5 | 2.75 | 2 | 5 1/16 | 2 9/16 | 2-12 | 1/4N.P.T | 5000 | 67950 | 46575 | |
| Cf.-6-s | 6 | 3.25 | 2.5 | 6 | 3 | 2 1/2-12 | 1/4N.P.T | 5000 | 80450 | 60000 | |
| Cf.-7-s | 7 | 3.75 | 3 | 7 11/16 | 4 1/8 | 3-12 | 1/4N.P.T | 5000 | 106930 | 75380 | |
| Cf.-8-s | 8 | 4.25 | 3.25 | 8 1/2 | 4 1/4 | 3 1/4-4 | 1/4N.P.T | 5000 | 144100 | 92200 | |
| Cf.-9-s | 9 | 4.75 | 3.75 | 9 1/2 | 4 3/4 | 3 1/2-4 | 1/4N.P.T | 5000 | 183430 | 113260 | |
| Cf.-10-s | 10 | 5.25 | 4.25 | 10 | 4 3/4 | 3 1/2-4 | 1/4N.P.T | 5000 | 215565 | 131545 |
