Nageltype Nokkenaanhanger
>
|
| Plaats van herkomst | China |
| Merknaam | SUMA |
| Certificering | ISO SGS |
| Modelnummer | Cf.-1/2-n-Sb |

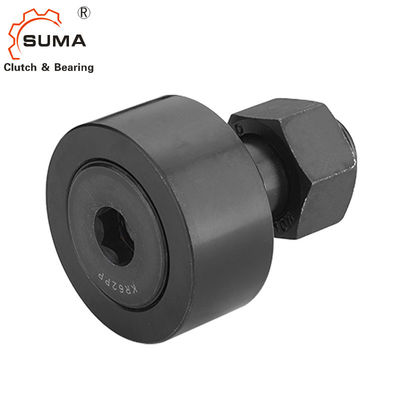

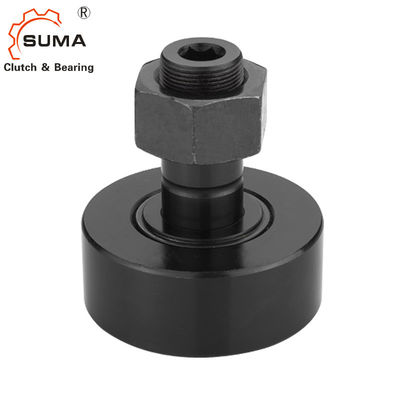

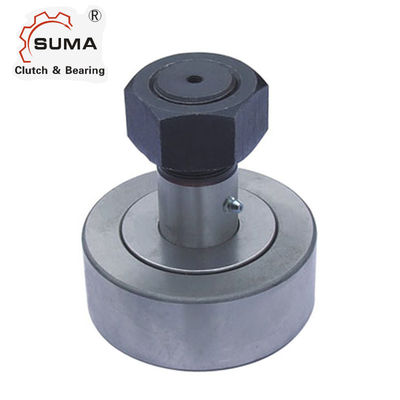

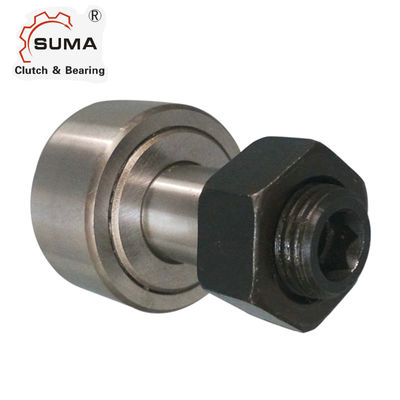

Cf.-1/2-n-Sb metallurgisch Aanhanger van de Nagel de Zonderlinge Nok
Eigenschappen
De nagel heeft een ring op het wordt geduwd die een zonderlinge buitendiameter die heeft.
Dit staat voor adjustability toe tijdens installatie om eender welke weerslag te elimineren de regelbare waaier voor een zonderling lager tweemaal dat van de excentriciteit is.
Afmetingen en Capaciteiten
| Unseal Nr. | Verzegelde Nr. | Rol Dia. (RD) |
Rol Breedte (W) |
Nagel Dia. (BR) |
Nagel Lgth (SL) |
Min Thrd Lgth (TL) |
Boete Draden |
Lub Fiting Grootte (f) |
Recom Toque |
Statisch Capaciteit Pond |
Dynamisch Cpacity Pond |
| Cf.-1/2-n-B | Cf.-1/2-n-Sb | 0,5 | 0,344 | 0,19 | 1/2 | 1/4 | 10-32 | 15 | 720 | 620 | |
| Cf.-1/2-B | Cf.-1/2-Sb | 0,5 | 0,375 | 0,19 | 5/8 | 1/4 | 10-32 | 15 | 790 | 680 | |
| Cf.-9/16-B | Cf.-9/16-Sb | 0,5625 | 0,375 | 0,19 | 5/8 | 1/4 | 10-32 | 15 | 790 | 680 | |
| Cf.-5/8-n-B | Cf.-5/8-n-Sb | 0,625 | 0,406 | 0,25 | 5/8 | 5/16 | 1/428 | 35 | 1065 | 930 | |
| Cf.-5/8-B | Cf.-5/8-Sb | 0,625 | 0,4375 | 0,25 | 3/4 | 5/16 | 1/428 | 35 | 1215 | 955 | |
| Cf.-11/16-B | Cf.-11/16-Sb | 0,6875 | 0,4375 | 0,25 | 3/4 | 5/16 | 1/428 | 95 | 1215 | 955 | |
| Cf.-3/4-B | Cf.-3/4-Sb | 0,75 | 0,5 | 0,375 | 7/8 | 3/8 | 3/824 | 3/16 | 95 | 2065 | 1660 |
| Cf.-7/8-B | Cf.-7/8-Sb | 0,875 | 0,5 | 0,375 | 7/8 | 3/8 | 3/824 | 3/16 | 250 | 2065 | 1660 |
| Cf.-1-B | Cf.-1-Sb | 1 | 0,625 | 0,4375 | 1 | 1/2 | 7/1620 | 3/16 | 250 | 3060 | 2225 |
| Cf.-1 1/8-B | CF.-1 1/8-SB | 1,125 | 0,625 | 0,4375 | 1 | 1/2 | 7/1620 | 3/16 | 350 | 3060 | 2225 |
| Cf.-1 1/4-B | CF.-1 1/4-SB | 1.25 | 0,75 | 0,5 | 1 1/4 | 5/8 | 1/220 | 3/16 | 350 | 4250 | 3930 |
| Cf.-1 3/8-B | CF.-1 3/8-SB | 1,375 | 0,75 | 0,5 | 1 1/4 | 5/8 | 1/220 | 3/16 | 650 | 4250 | 3930 |
| Cf.-1 1/2-B | CF.-1 1/2-SB | 1.5 | 0,875 | 0,625 | 1 1/2 | 3/4 | 5/8-18 | 3/16 | 650 | 5640 | 4840 |
| Cf.-1 5/8-B | CF.-1 5/8-SB | 1,625 | 0,875 | 0,625 | 1 1/2 | 3/4 | 5/8-18 | 3/16 | 1250 | 5640 | 4840 |
| Cf.-1 3/4-B | CF.-1 3/4-SB | 1.75 | 1 | 0,75 | 1 3/4 | 7/8 | 3/4-16 | 3/16 | 1250 | 7920 | 6385 |
| Cf.-1 7/8-B | CF.-1 7/8-SB | 1,875 | 1 | 0,75 | 1 3/4 | 7/8 | 3/4-16 | 3/16 | 1500 | 7920 | 6385 |
| Cf.-2-B | Cf.-2-Sb | 2 | 1.25 | 0,875 | 2 | 1 | 7/8-14 | 3/16 | 1500 | 10570 | 8090 |
| Cf.-2 1/4-B | CF.-2 1/4-SB | 2.25 | 1.25 | 0,875 | 2 | 1 | 7/8-14 | 3/16 | 2250 | 10570 | 8090 |
| Cf.-2 1/2-B | CF.-2 1/2-SB | 2.5 | 1.5 | 1 | 2 1/4 | 1 1/8 | 1-14 | 3/16 | 2250 | 16450 | 11720 |
| Cf.-2 3/4-B | CF.-2 3/4-SB | 2.75 | 1.5 | 1 | 2 1/4 | 1 1/8 | 1-14 | 3/16 | 3450 | 16450 | 11720 |
| Cf.-3-B | Cf.-3-Sb | 3 | 1.75 | 1.25 | 2 1/2 | 1 1/4 | 1 1/4-12 | 1/4 | 3450 | 24910 | 15720 |
| Cf.-3 1/4-B | CF.-3 1/4-SB | 3.25 | 1.75 | 1.25 | 2 1/2 | 1 1/4 | 1 1/4-12 | 1/4 | 4200 | 24910 | 15720 |
| Cf.-3 1/2-B | CF.-3 1/2-SB | 3.5 | 2 | 1,375 | 2 3/4 | 1 3/8 | 1 3/8-12 | 1/4 | 5000 | 31625 | 22800 |
| Cf.-4-B | Cf.-4-Sb | 4 | 2.25 | 1.5 | 3 1/2 | 1 1/2 | 1 1/2-12 | 1/4 | 5000 | 44770 | 2998 |
