DC2222C Sprag Clutch Bearing 22.225mm Bore 63Nm Torque

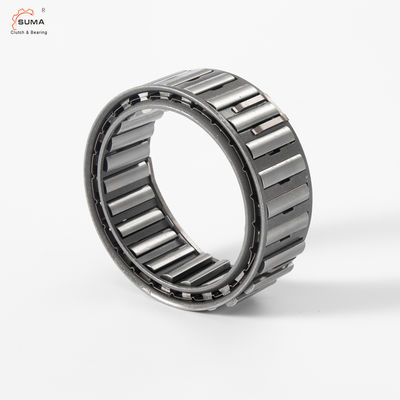

Grote Afbeelding : DC2222C Sprag Clutch Bearing 22.225mm Bore 63Nm Torque

Productdetails:

Plaats van herkomst:	China
Merknaam:	SUMA
Modelnummer:	DC2222C

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	2
Prijs:	$6.20-7

Contact

DC2222C Sprag Clutch Bearing 22.225mm Bore 63Nm Torque

beschrijving

Buitendiameter:	38.885 mm	Boormaat:	22.225mm
Normaal koppel:	63Nm	Gewicht:	0,03 kg
Sprags hoeveelheid:	12	Overbrengingssnelheid (buiten):	750RPM
Overbrengingssnelheid (binnen):	1500 tpm	Dikte:	10 mm
Sprag -materiaal:	GCR15	Precisie -beoordeling:	PO
Typ van afdichting:	Open	Type:	Sprag
Oppervlakte hardheid:	HRC 60-62	Kern hardheid:	HRC35-45
Maximale taps toelopen:	0,007 mm per 25 mm
Markeren:	22.225mm bore sprag clutch bearing , 63Nm torque one way clutch bearing , DC2222C sprag clutch bearing

DC2222C 22.225*38.885*25.4mm Freewheel Overrunning Clutch Sprag One Way Bearings

The DC2222C is a high-performance sprag type freewheel overrunning clutch bearing designed for industrial applications requiring reliable one-way rotation control.

Technical Specifications

Item	DC2222G-N
Outer Diameter	38.885mm
Bore Size	22.225mm
Nominal Torque	63
Weight	0.03kg
Sprags Quantity	12
Overrunning Speed (outer race)	750
Overrunning Speed (inner race)	1500
Port	Shanghai; Ningbo
Delivery Time	1-2 Days

Product Features

Sprag type freewheel cage design without inner or outer races
Requires installation in a design providing races, bearing support for axial and radial loads
Compatible with all standard lubricants used in power transmission equipment

Tolerance Specifications

The sprag space tolerance must not be exceeded. Inner and outer races must both have a minimum plain width "e", without any recess, to ensure proper freewheel function.

Hardness Requirements

Surface hardness: HRC 60 to 62 (minimum 0.6mm depth)

Core hardness: HRC 35 to 45

Surface roughness: ≤ 22CLA

Maximum taper between races: 0.007mm for 25mm width

Available Sizes

Type	Drag Torque (NM)	Size (mm)	Number of Clips
DC2222G	50	22.225
DC2776	95	27.762
DC3034	99	30.34
DC3175(3C)	127	31.75	3
DC3809A	220	38.092
DC4127(3C)	179	41.275	3
DC4445A	290	44.45
DC4972(4C)	245	49.721	4
DC5476A	420	54.765

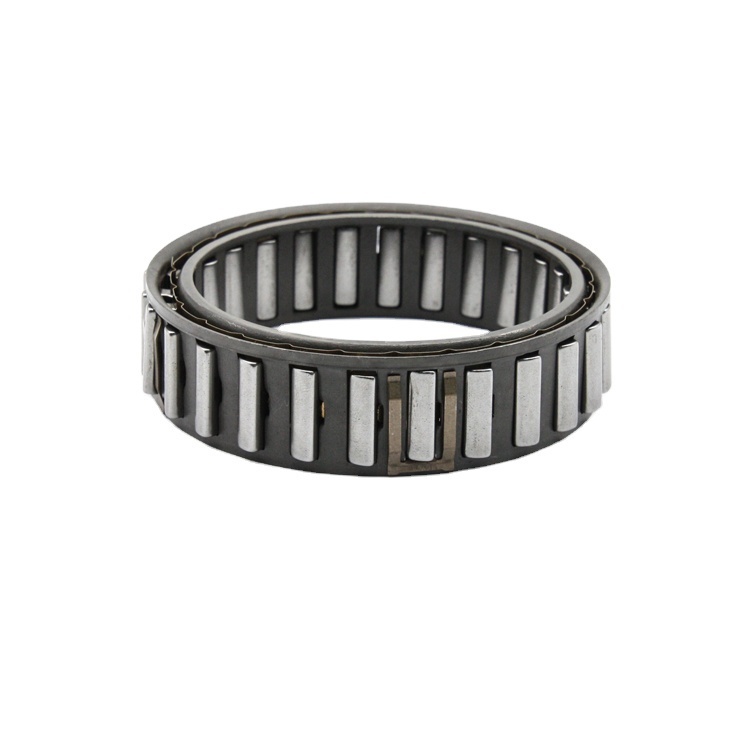

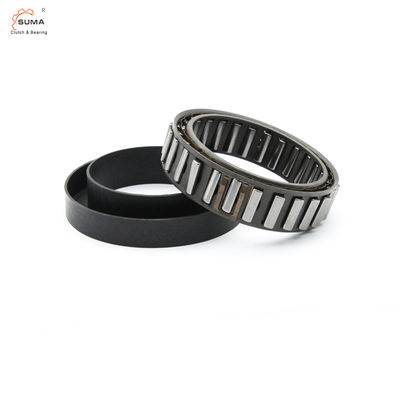

Product Images

Packaging & Shipping

Standard Packaging: Each unit in white box + 19*18*9cm box + 29*28*19CM carton box

Bulk Packaging: For orders over 100kg - Carton box + Wooden Box/Wooden Pallet

Frequently Asked Questions

How do you pack the goods?

Total less than 25 KG: Each in white box + 19*18*9cm box + 29*28*19CM carton box

Total Weight over 100KG: Carton box + Wooden Box / Wooden Pallet

Can I get samples from you?

Samples are available for quality verification and testing purposes.

Can you promise to deliver the goods in time?

Small items: In stock, ready for immediate shipment

Medium Items: 10-15 Days production time

Big items: 20-25 Days production time
