Name: FS600 FS700 FS800 HPI Sprag Freewheel Clutch Bearing 450-3000Nm Torque
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: FS/HPI -serie
Price: 179.00 USD
Availability: InStock

Thuis Producten Één Lager van de Manierkoppeling

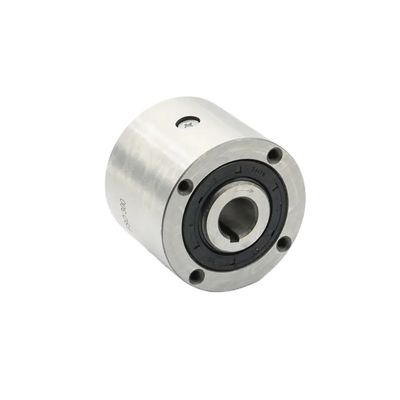

FS600 FS700 FS800 HPI Sprag Freewheel Clutch Bearing 450-3000Nm Torque

Productdetails:

Plaats van herkomst:	Jiangsu, China
Merknaam:	SUMA OR OEM
Modelnummer:	FS/HPI -serie

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	2
Prijs:	$129-229

Contact

Gedetailleerde productomschrijving

Precisie -beoordeling:	PO	Type:	Sprag, rollertype
Materiaal:	GCR15	Breedte:	63.5127mm
Gewicht:	1.6-19kg	Koppel:	450-3000 nm
Binnendiameter:	1570mm	Buitendiameter:	76.2-180.975mm
Smeermiddel:	MOS2 poeder smeermiddel	Dynamische belasting:	245kN
Statische belasting:	1220kn	Het overschrijden van snelheden:	3000/900 min-1
Draagmoment:	18-156 NCM	Afdichtingstype:	Lipafdichtingen, labyrintafdichtingen
Dragende ondersteuning:	Twee kogellagers
Markeren:	HPI sprag freewheel clutch bearing , high torque one way clutch bearing , FS600 FS700 FS800 clutch bearing

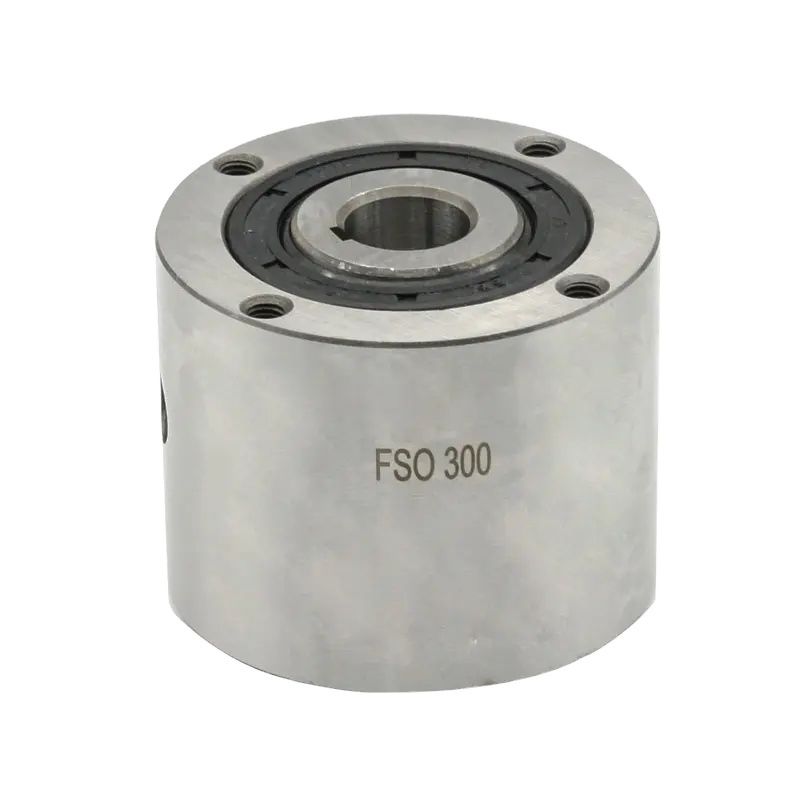

FS600 FS700 FS800 HPI Sprag Type Freewheel Clutch One Way Bearing

The FS600, FS700, and FS800 HPI series are high-performance sprag type freewheel clutch bearings designed for one-directional operation in industrial machinery applications.

Product Specifications

Model:

HPI / FS / FSO

Material:

GCr15

Type:

Sprag

Inner Diameter:

15-70mm

Outer Diameter:

76.2-180.975mm

Weight:

1.6-19kg

Lubricant:

MoS2 powder lubricant

Load Ratings:

Dynamic: 245KN | Static: 1220KN

Application:

Industrial Machines

Key Features

Sprag type freewheels are self-contained, sealed and bearing supported
Utilizes two ball bearings for enhanced durability
Available with oil or grease lubrication depending on type
Full sprag complement provides high torque capacity for given diameter
Overload protection through sprag-to-sprag abutment prevents sprag tilt
HPI models are oil lubricated with standard shaft lip seals
FSOGR models are grease lubricated with optional labyrinth seals
HPI series specially designed for high-speed indexing applications

Technical Specifications Table

Type	Size	Overrunning speeds	Drag Torque [Nm]	nmax [min-1]	dH7-bxh [mm]	d4 [mm]	A [mm]	B [mm]	C [mm]	E [mm]	F [mm]	G [mm]	K [mm]	f [mm]
HPI/FS 300	379	3000/900	15-5x5	12...19	63.5	76.2	60.45	1.6	28.58	66.67	13	0.8	1.6	18
HPI/FS 400	407	2800/850	18-6x6	12...22	69.9	88.9	68.07	1.6	30	73	13	0.8	2.7	27
HPI/FS 500	1621	2500/800	30-8x7	19...33	88.9	107.95	85.73	1.6	45	92	16	1.5	4.8	31
HPI/FS 600	3105	2200/750	45-14x9	24...57	95.3	136.53	92.2	1.6	63.5	120.6	16	1.6	8.6	62
HPI/FS 700	6900	1600/450	60-18x11	48...82	127	180.98	123.9	1.6	90	158.8	20	1.6	19	156
