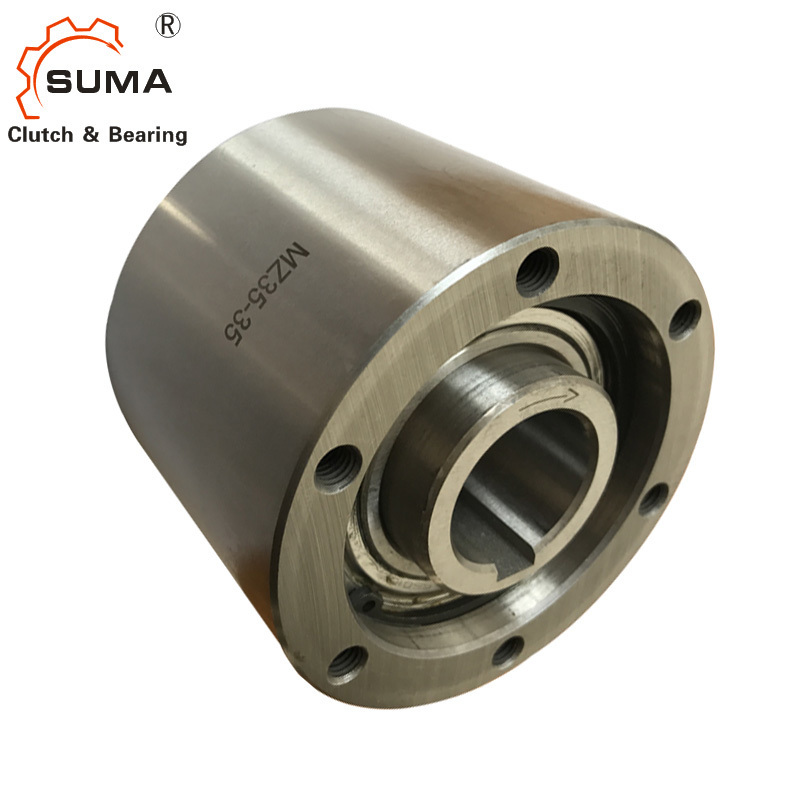

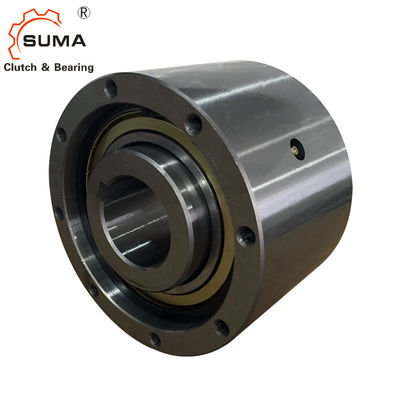

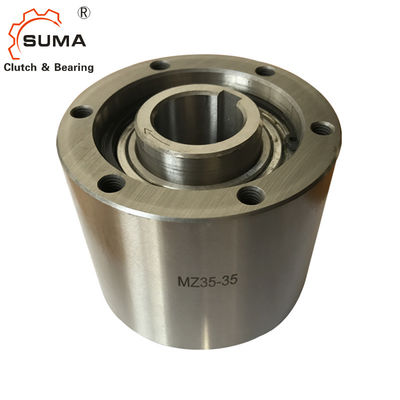

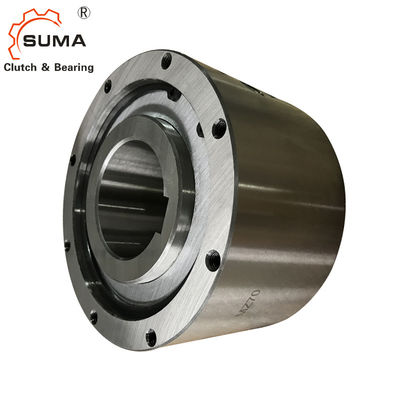

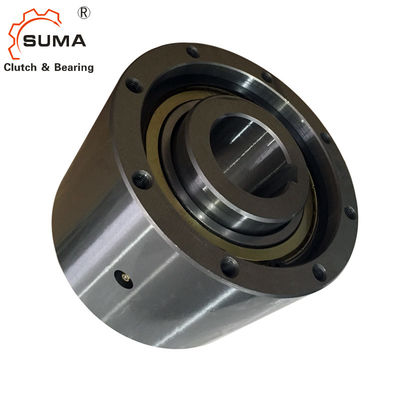

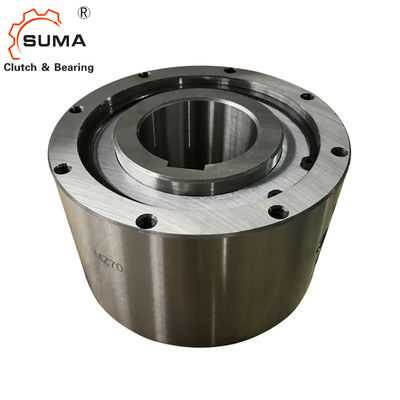

Name: MX35 Cam Clutch Bearing 35mm Bore 235Nm Torque Capacity
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: MX35
Price: 567.60 USD
Availability: InStock

Thuis Producten Één Lager van de Manierkoppeling

MX35 Cam Clutch Bearing 35mm Bore 235Nm Torque Capacity

Productdetails:

Plaats van herkomst:	Jiangsu, China
Merknaam:	SUMA
Modelnummer:	MX35

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1

Contact

Gedetailleerde productomschrijving

Precisie -beoordeling:	PO	Typ van afdichting:	Verzegeld
Type:	CAM	Koppelcapaciteit:	235 nm
Max -indexering:	1200 cyclus/min	Draagmoment:	1.36
Gewicht:	6,4 kg	Boormaat:	35 mm
Buitenras:	125 mm	Druk op Fit Tolerance:	0,025 mm
Hub boring tolerantie:	H6 of H7	Model:	MX35
Installatiemethode:	Druk op Fit	Snelwegklaring:	Strak passen bij de topklaring
Montagedruk:	Inner Race eindigen alleen
Markeren:	MX35 cam clutch bearing 35mm bore , one way clutch bearing 235Nm torque , 35mm bore clutch bearing with warranty

MX35 One Way Roller Clutch Cam Clutch

Product Specifications

Item	MX35
Precision	P0
Type	cam
Bore size (mm)	35
Outer race (mm)	125
Torque Capacity(Nm)	235
Max.Indexing(cycle/min)	1200
Weight (kg)	6.4
Application	Elevator, industrial machine and more

Installation and Usage

Insert the clutch into the hub bore of a pulley, gear, or torque arm and secure with high-tension bolts in the tapped holes.
MX Series clutches require a press fit for indexing applications (do not exceed 0.025 mm).
Adjust the key side to fit the keyway tightly while maintaining clearance between the top of key and keyway.
When mounting on a shaft, apply pressure only to the inner race end - never to the outer race.
For optimal performance, pair with braking and backstopping devices as needed.
Hub bore tolerance should be H6 or H7.

Technical Parameters
