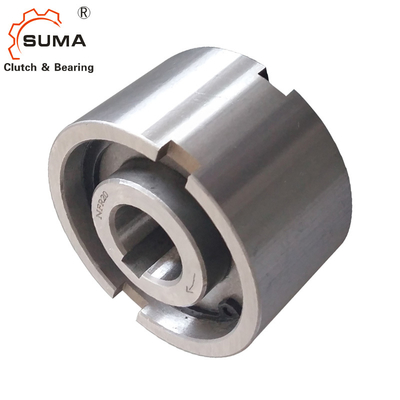

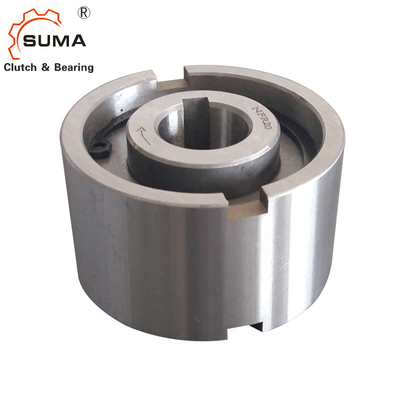

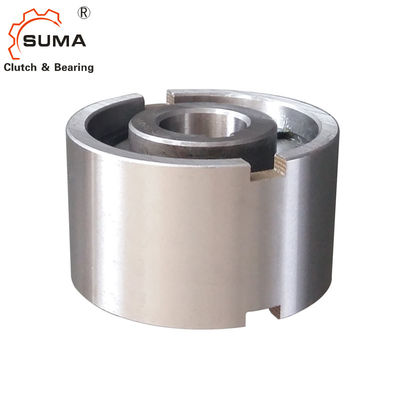

Name: NFR45 One Way Clutch Bearing 1500Nm Torque 1000RPM
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: NFR45
Price: 186.00 USD
Availability: InStock

Thuis Producten Één Lager van de Manierkoppeling

NFR45 One Way Clutch Bearing 1500Nm Torque 1000RPM

Productdetails:

Plaats van herkomst:	China
Merknaam:	SUMA
Modelnummer:	NFR45

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1
Prijs:	$175-198

Contact

Gedetailleerde productomschrijving

Type:	Rollertype	Precisie -beoordeling:	PO
Typ van afdichting:	Open	Dikte:	63 mm
Koppel capaciteit:	1500Nm	Inner Race overschreden:	1000 tpm
Outer Race overschreden:	2400 tpm	Gewicht:	4kg
Boormaat:	8-130 mm	Buitenracegrootte:	37-300 mm
Het overschrijden van snelheden:	1000-3600rpm	Koppelbereik:	20-34750n.m
Diktebereik:	20180mm	gewichtsbereik:	0,1-68kg
Dragende ondersteuning:	Staal op stalen / kogellagers
Markeren:	One Way Clutch Bearing 1500Nm torque , One Way Clutch Bearing 1000RPM , NFR45 One Way Clutch Bearing

NFR45 NFR 45 One Way Backstopping Clutch Freewheel Bearings

Product Specifications

Attribute	Value
Applicable Industries	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Construction works, Energy & Mining
Type	ROLLER TYPE
Precision Rating	P0
Seals Type	OPEN
Product Name	Backstopping Clutch Freewheel Bearings
Thickness	63mm
Torque Capacity	1500Nm
Inner Race Overruns	1000RPM
Outer Race Overruns	2400RPM
Weight	4kg

Product Description

The NFR Series One Way Backstopping Clutch is a bearing-supported roller type freewheel without any sealing. Lubrication and sealing must be provided by the installation, with standard lubrication being oil.

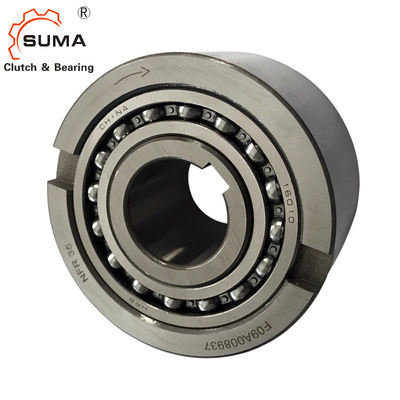

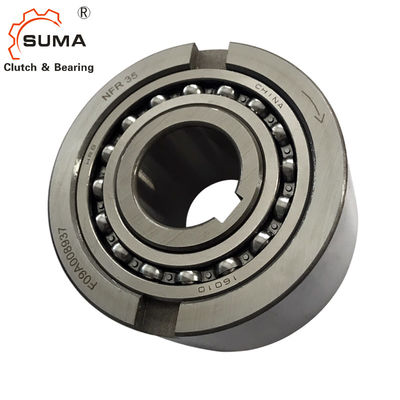

For sizes 8 to 20 units, steel on steel bearing supports the inner race. Above size 20, two 160...Series ball bearings are used, providing higher overrunning speed capacity.

The inner race is keyed to the shaft. The outer race has a positive n6 tolerance for a press fit in a housing to H7. Additional side notches enable positive torque transmission. The housing must be strong enough to prevent expansion after assembly.

Technical Specifications

Model	Torque (N.m)	Overrunning Speeds (rpm)	Dimension (mm)	Weight (Kg)
NFR8-NFR130	20-34750	Inner Race: 1000-250 Outer Race: 1000-3600	Bore Size: 8-130 Outer Race Size: 37-300 Thickness: 20-180	0.1-68

Detailed Parameters

1) Tmax = 2 × TKN

2) Inner race overruns

3) Outer race overruns
