Nageltype Nokkenaanhanger
>
|
| Plaats van herkomst | China |
| Merknaam | SUMA |
| Certificering | ISO SGS |
| Modelnummer | Ccfh-3 1/4-s |

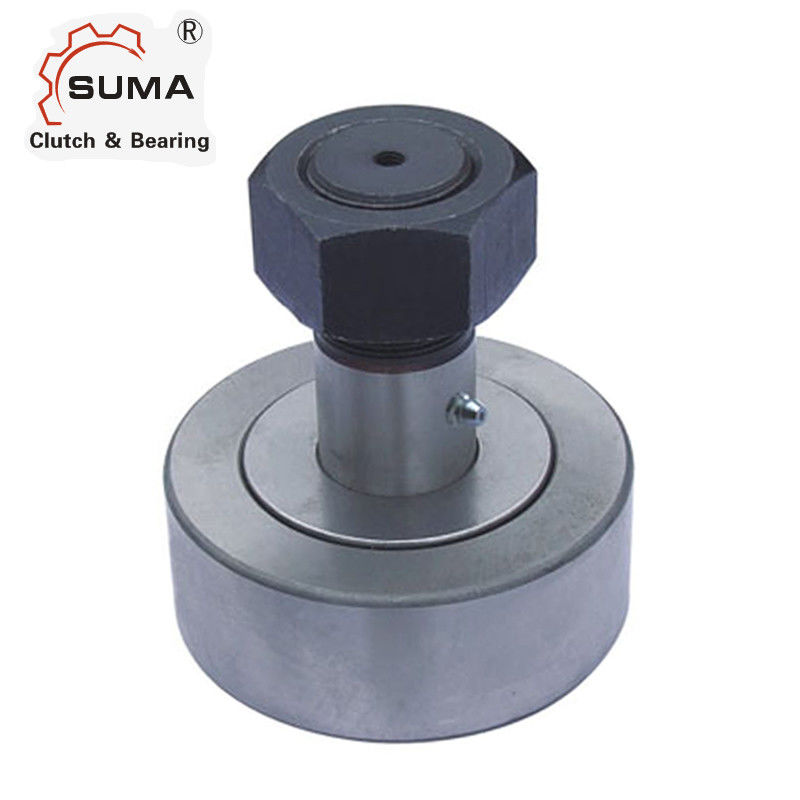

Ccfh-3 1/4-s Hoge Radiale Bekroonde Verzegelde Nageltype Nokkenaanhanger
Eigenschappen
Eigenschappen: veelvoudige compacte structuur, hoge roterende nauwkeurigheid, grote verscheidenheden, breed aanpassingsvermogen en gemakkelijke installatie.
Het kan hoge radiale lading en bepaalde schoklading dragen en in werktuigmachine, metallurgische, textiel en drukmachines, verwerkingslijnen en enz. wijd gebruikt.
Technische Datas
| Productnaam | Ccfh-3 1/4-s Nageltype Spoorrol |
| Model | Ccfh-3 1/4-s |
| Materiaal | GCr15 |
| Pakket | Kartondoos/Houten doos, katrol, enz. |
| Betalingstermijnen | TT. L/C, D/A, D/P, Western Union |
| levertijd | 2-4 dagen voor de steekproef, 7 dagen voor grote orde |
Afmetingen en Capaciteiten
| INSEALED BRG. Nr. |
ROL DIA (RD) |
ROL BREEDTE (w) |
NAGEL DIA (BR) |
NAGEL LENGTE (SL) |
MIN. DRAAD LENGTE (TL) |
BOETE DRAAD |
OLIEgat | LUS MONTAGE GROOTTE (f) |
RRCOM. CL AMPING TORSIE LSS. IN |
|
| GAT CENTRUM (HC) |
GAT DIA (HD) |
|||||||||
| Ccfh-1/2-s | 0,500 | 0,375 | 0,250 | 5/8 | 1/4 | 1/428 | 35 | |||
| Ccfh-9/16-s | 0,5625 | 0,375 | 0,250 | 5/8 | 1/4 | 1/428 | 35 | |||
| Ccfh-5/8-s | 0,625 | 0,4375 | 0,3125 | 3/4 | 5/16 | 5/1624 | 90 | |||
| Ccfh-11/16-s | 0,6875 | 0,4375 | 0,3125 | 3/4 | 5/16 | 5/1624 | 90 | |||
| Ccfh-3/4-s | 0,750 | 0,500 | 0,4375 | 7/8 | 3/8 | 7/1620 | 1/4 | 3/32 | 3/16 | 250 |
| Ccfh-7/8-s | 0,875 | 0,500 | 0,4375 | 7/8 | 3/8 | 7/1620 | 1/4 | 3/32 | 3/16 | 250 |
| Ccfh-1-s | 1,000 | 0,625 | 0,625 | 1 | 1/2 | 5/8-18 | 1/4 | 3/32 | 3/16 | 650 |
| Ccfh-1 1/8-s | 1.1250 | 0,625 | 0,625 | 1 | 1/2 | 5/8-18 | 1/4 | 3/32 | 3/16 | 650 |
| Ccfh-1 1/4-s | 1,250 | 0,750 | 0,750 | 1 1/4 | 5/8 | 3/4-16 | 5/16 | 3/32 | 3/16 | 1250 |
| Ccfh-1 3/8-s | 1,375 | 0,750 | 0,750 | 1 1/4 | 5/8 | 3/4-16 | 5/16 | 3/32 | 3/16 | 1250 |
| Ccfh-1 1/2-s | 1,500 | 0,875 | 0,875 | 1 1/2 | 3/4 | 7/8-14 | 3/8 | 3/32 | 3/16 | 1500 |
| Ccfh-1 5/8-s | 1,625 | 0,875 | 0,875 | 1 1/2 | 3/4 | 7/8-14 | 3/8 | 3/32 | 3/16 | 1500 |
| Ccfh-1 3/4-s | 1,750 | 1,000 | 1,000 | 1 3/4 | 7/8 | 1-14 | 7/16 | 3/32 | 3/16 | 2250 |
| Ccfh-1 7/8-s | 1,875 | 1,000 | 1,000 | 1 3/4 | 7/8 | 1-14 | 7/16 | 3/32 | 3/16 | 2250 |
| Ccfh-2-s | 2,000 | 1,125 | 1,125 | 2 | 1 | 1 1/8-12 | 1/2 | 1/8 | 3/16 | 2800 |
| Ccfh-2 1/4-s | 2,250 | 1,125 | 1,125 | 2 | 1 | 1 1/8-12 | 1/2 | 1/8 | 3/16 | 2800 |
| Ccfh-2 1/2-s | 2,500 | 1,250 | 1,250 | 2 1/4 | 1 1/8 | 1 1/4-12 | 9/16 | 1/8 | 3/16 | 3450 |
| Ccfh-2 3/4-s | 2,750 | 1,250 | 1,250 | 2 1/4 | 1 1/8 | 1 1/4-12 | 9/16 | 1/8 | 3/16 | 3450 |
| Ccfh-3-s | 3,000 | 1,500 | 1,500 | 2 1/2 | 1 1/4 | 1 1/2-12 | 5/8 | 1/8 | 1/4 | 5000 |
| Ccfh-3 1/4-s | 3,250 | 1,500 | 1,500 | 2 1/2 | 1 1/4 | 1 1/2-12 | 5/8 | 1/8 | 1/4 | 5000 |
| Ccfh-3 1/2-s | 3,500 | 1,750 | 1,750 | 2 3/4 | 1 3/8 | 1 3/4-12 | 11/16 | 1/8 | 1/4 | 5000 |
| Ccfh-4-s | 4,000 | 2,000 | 2,000 | 3 1/2 | 1 1/2 | 2-12 | 3/4 | 1/8 | 1/4 | 5000 |
