Nageltype Nokkenaanhanger
>
|
| Plaats van herkomst | China |
| Merknaam | SUMA |
| Certificering | ISO SGS |
| Modelnummer | Cfh-1 7/8-B |
Cfh-1 7/8-B Verzegelde van de de Rolnok van het Nagelspoor Aanhangerlagers
Eigenschappen
Het kan hoge radiale lading en bepaalde schoklading dragen en in werktuigmachine, metallurgische, textiel en drukmachines, verwerkingslijnen en enz. wijd gebruikt.
Samenstelling: machinaal bewerkte dik-muur buitenring, naaldrollen of cilindrische rolreeksen, of kooibegeleiding of de volledige rol van de aanvullingsnaald, binnenring of bout en verbinding.
Het voorkomen: veelvoudige compacte structuur, hoge roterende nauwkeurigheid, grote verscheidenheden, breed aanpassingsvermogen en gemakkelijke installatie.
Afmetingen en Capaciteiten
| OPEN BRG. Nr. |
VERZEGELD BRG. Nr. |
ROL LER |
ROL LER |
NAGEL DIA (BR) |
NAGEL GTH |
MIN. EAD GTH |
BOETE EAD |
OLIEgat | LUB MONTAGE GROOTTE (f) |
RRCOM. CL AMPING TORSIE Pond. IN |
|
|
GAT TER |
GAT (HD) |
||||||||||
| Cfh-1/2-B | Cfh-1/2-B | 0,500 | 0,375 | 0,250 | 5/8 | 1/4 | 1/428 | 35 | |||
| Cfh-9/16-B | Cfh-9/16-B | 0,5625 | 0,375 | 0,250 | 5/8 | 1/4 | 1/428 | 35 | |||
| Cfh-5/8-B | Cfh-5/8-B | 0,625 | 0,4375 | 0,3125 | 3/4 | 5/16 | 5/1624 | 90 | |||
| Cfh-11/16-B | Cfh-11/16-B | 0,6875 | 0,4375 | 0,3125 | 3/4 | 5/16 | 5/1624 | 90 | |||
| Cfh-3/4-B | Cfh-3/4-B | 0,750 | 0,500 | 0,4375 | 7/8 | 3/8 | 7/1620 | 1/4 | 3/32 | 3/16 | 250 |
| Cfh-7/8-B | Cfh-7/8-B | 0,875 | 0,500 | 0,4375 | 7/8 | 3/8 | 7/1620 | 1/4 | 3/32 | 3/16 | 250 |
| Cfh-1-B | Cfh-1-B | 1,000 | 0,625 | 0,625 | 1 | 1/2 | 5/8-18 | 1/4 | 3/32 | 3/16 | 650 |
| Cfh-1 1/8-B | Cfh-1 1/8-B | 1.1250 | 0,625 | 0,625 | 1 | 1/2 | 5/8-18 | 1/4 | 3/32 | 3/16 | 650 |
| Cfh-1 1/4-B | Cfh-1 1/4-B | 1,250 | 0,750 | 0,750 | 1 1/4 | 5/8 | 3/4-16 | 5/16 | 3/32 | 3/16 | 1250 |
| Cfh-1 3/8-B | Cfh-1 3/8-B | 1,375 | 0,750 | 0,750 | 1 1/4 | 5/8 | 3/4-16 | 5/16 | 3/32 | 3/16 | 1250 |
| Cfh-1 1/2-B | Cfh-1 1/2-B | 1,500 | 0,875 | 0,875 | 1 1/2 | 3/4 | 7/8-14 | 3/8 | 3/32 | 3/16 | 1500 |
| Cfh-1 5/8-B | Cfh-1 5/8-B | 1,625 | 0,875 | 0,875 | 1 1/2 | 3/4 | 7/8-14 | 3/8 | 3/32 | 3/16 | 1500 |
| Cfh-1 3/4-B | Cfh-1 3/4-B | 1,750 | 1,000 | 1,000 | 1 3/4 | 7/8 | 1-14 | 7/16 | 3/32 | 3/16 | 2250 |
| Cfh-1 7/8-B | Cfh-1 7/8-B | 1,875 | 1,000 | 1,000 | 1 3/4 | 7/8 | 1-14 | 7/16 | 3/32 | 3/16 | 2250 |
| Cfh-2-B | Cfh-2-B | 2,000 | 1,125 | 1,125 | 2 | 1 | 1 1/8-12 | 1/2 | 1/8 | 3/16 | 2800 |
| Cfh-2 1/4-B | Cfh-2 1/4-B | 2,250 | 1,125 | 1,125 | 2 | 1 | 1 1/8-12 | 1/2 | 1/8 | 3/16 | 2800 |
| Cfh-2 1/2-B | Cfh-2 1/2-B | 2,500 | 1,250 | 1,250 | 2 1/4 | 1 1/8 | 1 1/4-12 | 9/16 | 1/8 | 3/16 | 3450 |
| Cfh-2 3/4-B | Cfh-2 3/4-B | 2,750 | 1,250 | 1,250 | 2 1/4 | 1 1/8 | 1 1/4-12 | 9/16 | 1/8 | 3/16 | 3450 |
| Cfh-3-B | Cfh-3-B | 3,000 | 1,500 | 1,500 | 2 1/2 | 1 1/4 | 1 1/2-12 | 5/8 | 1/8 | 1/4 | 5000 |
| Cfh-3 1/4-B | Cfh-3 1/4-B | 3,250 | 1,500 | 1,500 | 2 1/2 | 1 1/4 | 1 1/2-12 | 5/8 | 1/8 | 1/4 | 5000 |
| Cfh-3 1/2-B | Cfh-3 1/2-B | 3,500 | 1,750 | 1,750 | 2 3/4 | 1 3/8 | 1 3/4-12 | 11/16 | 1/8 | 1/4 | 5000 |
| Cfh-4-B | Cfh-4-B | 4,000 | 2,000 | 2,000 | 3 1/2 | 1 1/2 | 2-12 | 3/4 | 1/8 | 1/4 | 5000 |
Technische Datas
| Productnaam | Cfh-1 7/8-B Nageltype Spoorrol |
| Model | Cfh-1 7/8-B |
| Materiaal | GCr15 |
| Pakket | Kartondoos/Houten doos, katrol, enz. |
| Betalingstermijnen | TT. L/C, D/A, D/P, Western Union |
| levertijd | 2-4 dagen voor de steekproef, 7 dagen voor grote orde |

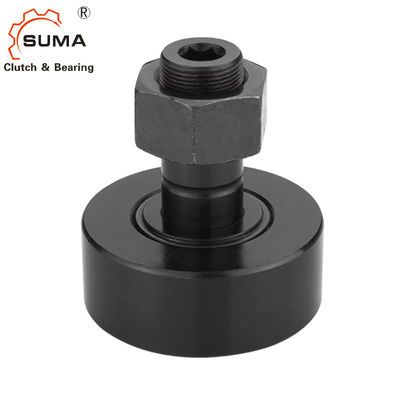

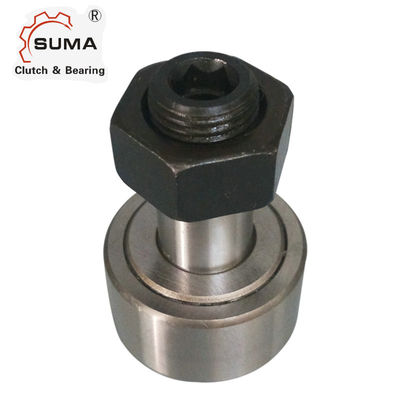

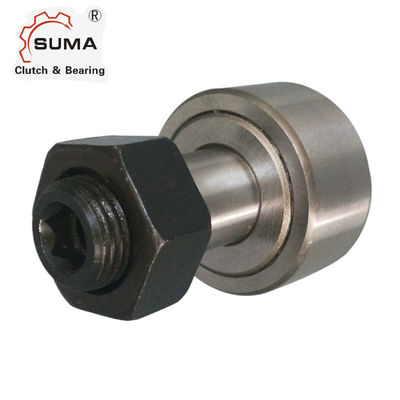

Beelden
