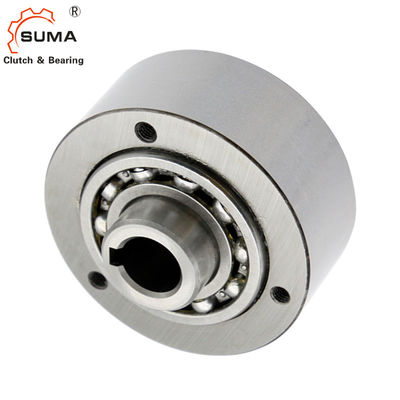

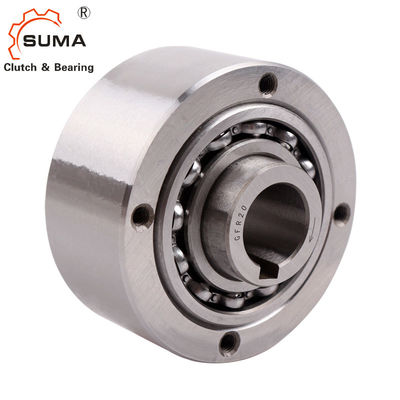

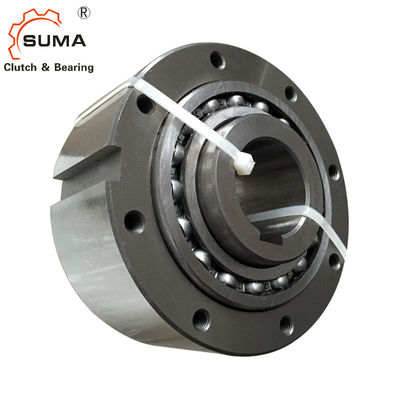

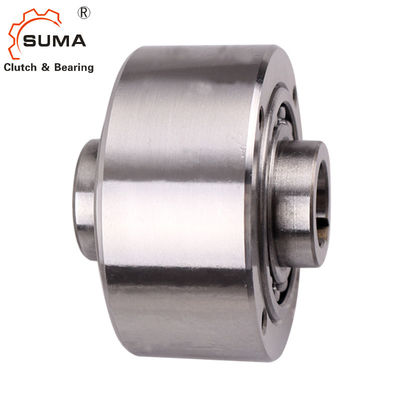

De Tolerantie 55Nm van GL12 GLP12 Sprag H6 ondersteunt Nokkenkoppeling
Eigenschappen
GL het type freewheelt heeft 160. Reekskogellagers die worden gebruikt om de binnenrace met het buitenras te centreren. de torsiekrachten worden overgebracht van de schacht aan het binnenras door middel van de sleutel en van het buitenras aan het externe gebied door middel van schroeven. de schachttolerantie moet h6 of j6 en buitenras zeer belangrijke tolerantie h7 zijn. of die het vet of de oliesmering moet op worden toegepast freewheelen vóór verrichting, na instructies op pagina 12 worden gegeven. Elk freewheelt wordt geleverd met twee document pakkingen die tussen het buitenras en de flenzen moeten worden opgenomen. Als zij niet worden gebruikt, freewheel zwaar beschadigd zou kunnen zijn.
Technische Datas
Productnaam | GL GLP Één het Lager van Maniersprag |
Model | GL GLP |
Materiaal | GCr15 |
Pakket | Kartondoos/Houten doos, katrol, enz. |
Betalingstermijnen | TT. L/C, D/A, D/P, Western Union |
levertijd | 2-4 dagen voor de steekproef, 7 dagen voor grote orde |
Afmetingen en Capaciteiten
Model | dH7 | Dh6 | L | L1 | L2 | D1 | D2 | D3 | z | g* | nMAX min-1 |
TN | Weerstand torsie |
Gewicht | |
mm | Binnen ras |
Buiten ras |
NM | NM | Kg | ||||||||||
GL 12 | 12 | 62 | 42 | 27 | 20 | 42 | 20 | 51 | 3 | ɸ5.5 | 4000 | 5600 | 55 | 0,11 | 0,5 |
GL 15 | 15 | 68 | 52 | 32 | 28 | 47 | 25 | 56 | 3 | M5 | 3700 | 5300 | 125 | 0,15 | 0,8 |
GL 20 | 20 | 75 | 57 | 39 | 34 | 55 | 30 | 64 | 4 | M5 | 2700 | 4600 | 181 | 0,18 | 1.0 |
GL 25 | 25 | 90 | 60 | 40 | 35 | 68 | 40 | 78 | 4 | M6 | 2200 | 3600 | 288 | 0,36 | 1.5 |
GL 30 | 30 | 100 | 68 | 48 | 43 | 75 | 45 | 87 | 6 | M6 | 1800 | 3300 | 500 | 0,40 | 2.2 |
GL 35 | 35 | 110 | 74 | 51 | 45 | 80 | 50 | 96 | 6 | M6 | 1500 | 3000 | 735 | 0,60 | 3.0 |
GL 40 | 40 | 125 | 86 | 59 | 53 | 90 | 55 | 108 | 6 | M8 | 1200 | 2600 | 1040 | 0,84 | 4.6 |
GL 45 | 45 | 130 | 86 | 59 | 53 | 95 | 60 | 112 | 8 | M8 | 1000 | 2400 | 1125 | 0,94 | 4.7 |
GL 50 | 50 | 150 | 94 | 72 | 64 | 110 | 70 | 132 | 8 | M8 | 850 | 2200 | 2125 | 1.28 | 7.2 |
GL 55 | 55 | 160 | 104 | 72 | 66 | 115 | 75 | 138 | 8 | M10 | 750 | 2000 | 2625 | 1.50 | 8.6 |
GL 60 | 60 | 170 | 114 | 89 | 78 | 125 | 80 | 150 | 10 | M10 | 650 | 1900 | 3500 | 1.60 | 10.5 |
GL 70 | 70 | 190 | 134 | 108 | 95 | 140 | 90 | 168 | 10 | M10 | 550 | 1700 | 5750 | 3.60 | 13.5 |
GL 80 | 80 | 210 | 144 | 108 | 100 | 160 | 105 | 185 | 10 | M10 | 500 | 1600 | 8500 | 3.60 | 18.2 |
GL 90 | 90 | 230 | 158 | 125 | 115 | 180 | 120 | 206 | 10 | M12 | 450 | 1500 | 14500 | 6.80 | 28.5 |
GL 100 | 100 | 270 | 182 | 131 | 120 | 210 | 140 | 240 | 10 | M16 | 350 | 1250 | 20000 | 8.80 | 42.5 |
GL 120 | 120 | 310 | 202 | 152 | 140 | 240 | 160 | 278 | 12 | M16 | 300 | 1100 | 25000 | 12.00 | 56.0 |
GL 130 | 130 | 310 | 212 | 168 | 152 | 240 | 160 | 278 | 12 | M16 | 250 | 1000 | 31250 | 12.50 | 65.0 |
GL 150 | 150 | 400 | 246 | 194 | 180 | 310 | 200 | 360 | 12 | M20 | 200 | 800 | 70000 | 13.50 | 138.0 |
Model | dH7 | Dh6 | L | L1 | L2 | D1 | D2 | D3 | z | g* | bH8 | t | nMAX min-1 |
TN | Weerstand torsie |
Gewicht | |
mm | mm | Binnen ras |
Buiten ras |
NM | NM | Kg | |||||||||||
GLP 12 | 12 | 62 | 42 | 27 | 20 | 42 | 20 | 51 | 3 | ɸ5.5 | 4 | 2 | 4000 | 5600 | 55 | 0,11 | 0,5 |
GLP 15 | 15 | 68 | 52 | 32 | 28 | 47 | 25 | 56 | 3 | M5 | 5 | 3 | 3700 | 5300 | 125 | 0,15 | 0,8 |
GLP 20 | 20 | 75 | 57 | 39 | 34 | 55 | 30 | 64 | 4 | M5 | 6 | 3.5 | 2700 | 4600 | 181 | 0,18 | 1.0 |
GLP 25 | 25 | 90 | 60 | 40 | 35 | 68 | 40 | 78 | 4 | M6 | 8 | 4 | 2200 | 3600 | 288 | 0,36 | 1.5 |
GLP 30 | 30 | 100 | 68 | 48 | 43 | 75 | 45 | 87 | 6 | M6 | 8 | 4 | 1800 | 3300 | 500 | 0,40 | 2.2 |
GLP 35 | 35 | 110 | 74 | 51 | 45 | 80 | 50 | 96 | 6 | M6 | 10 | 5 | 1500 | 3000 | 735 | 0,60 | 3.0 |
GLP 40 | 40 | 125 | 86 | 59 | 53 | 90 | 55 | 108 | 6 | M8 | 12 | 5 | 1200 | 2600 | 1040 | 0,84 | 4.6 |
GLP 45 | 45 | 130 | 86 | 59 | 53 | 95 | 60 | 112 | 8 | M8 | 14 | 5.5 | 1000 | 2400 | 1125 | 0,94 | 4.7 |
GLP 50 | 50 | 150 | 94 | 72 | 64 | 110 | 70 | 132 | 8 | M8 | 14 | 5.5 | 850 | 2200 | 2125 | 1.28 | 7.2 |
GLP 55 | 55 | 160 | 104 | 72 | 66 | 115 | 75 | 138 | 8 | M10 | 16 | 6 | 750 | 2000 | 2625 | 1.50 | 8.6 |
GLP 60 | 60 | 170 | 114 | 89 | 78 | 125 | 80 | 150 | 10 | M10 | 18 | 7 | 650 | 1900 | 3500 | 1.60 | 10.5 |
GLP 70 | 70 | 190 | 134 | 108 | 95 | 140 | 90 | 168 | 10 | M10 | 20 | 7.5 | 550 | 1700 | 5750 | 3.60 | 13.5 |
GLP 80 | 80 | 210 | 144 | 108 | 100 | 160 | 105 | 185 | 10 | M10 | 22 | 9 | 500 | 1600 | 8500 | 3.60 | 18.2 |
GLP 90 | 90 | 230 | 158 | 125 | 115 | 180 | 120 | 206 | 10 | M12 | 25 | 9 | 450 | 1500 | 14500 | 6.80 | 28.5 |
GLP 100 | 100 | 270 | 182 | 131 | 120 | 210 | 140 | 240 | 10 | M16 | 28 | 10 | 350 | 1250 | 20000 | 8.80 | 42.5 |
GLP 120 | 120 | 310 | 202 | 152 | 140 | 240 | 160 | 278 | 12 | M16 | 32 | 11 | 300 | 1100 | 25000 | 12.00 | 56.0 |
GLP 130 | 130 | 310 | 212 | 168 | 152 | 240 | 160 | 278 | 12 | M16 | 32 | 11 | 250 | 1000 | 31250 | 12.50 | 65.0 |
GLP 150 | 150 | 400 | 246 | 194 | 180 | 310 | 200 | 360 | 12 | M20 | 36 | 12 | 200 | 800 | 70000 | 13.50 | 138.0 |
maximum t = 2 x T n
spiebaan DIN 6885 pagina 1
*GLP12 heeft 3 x ø5,5 door gaten
1) Het binnenras is sneller dan buitenras
2) het buitenras is sneller dan binnenras
